Inorganic Specimens: Material Regeneration of Shell Waste

Time: 2014 – Present

Location: Shunde, China

Shells are a long‑underestimated natural material — a largely overlooked logic of natural formation.

As a naturally occurring form of calcium carbonate, shells share essentially identical chemical composition with marble and limestone. Yet their formation mechanisms differ drastically: geological minerals form under extreme heat, pressure and prolonged geological activity, while shells grow via biomineralisation — a biological process directed precisely by organic molecules under ambient temperature and pressure. By comparison, shell formation features lower energy consumption, higher efficiency and a more ordered microstructure.

The inspiration drawn from shells lies not in discovering new materials, but in understanding a low‑carbon philosophy of creation: replacing energy‑intensive processing with molecular‑level informational regulation. Organic matter acts as a structural template for calcium carbonate crystallisation, enabling inorganic substances to self‑assemble into well‑ordered composite structures. When shells are casually discarded or landfilled, we waste not only calcium carbonate minerals, but also hundreds of millions of years of evolved growth wisdom refined by nature.

The Inorganic Specimens project translates this insight into practice. Using shell waste as the primary raw material and BENTU’s self‑developed alkali‑activated geopolymer binder system, we adopt unfired casting and pressure‑forming processes to unlock shells’ untapped material potential. Beyond chemical recycling, our core goal is to preserve their inherent microstructures and natural tactile qualities.

I. The Problem: Discarded Biominerals

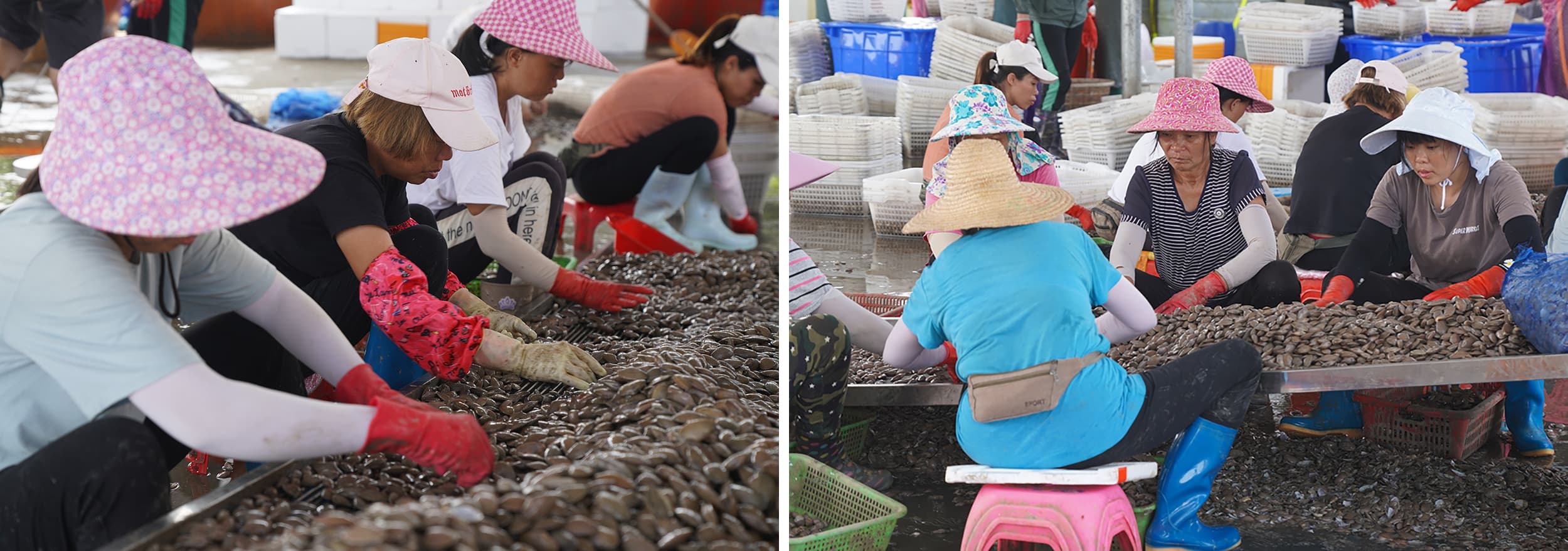

With rapid urbanisation and growing seafood consumption, shell waste has become a pressing environmental concern. Aquaculture, seafood processing and catering industries generate massive volumes of shell waste annually. Calcium carbonate, shells’ main constituent, degrades extremely slowly in nature. Random stockpiling occupies land, while residual organic matter decomposes, emits foul odours and breeds pests, triggering secondary pollution. Worse still, landfilling and incineration erase shells’ delicate multi‑scale microstructure, unique texture and pearlescent sheen entirely.

This constitutes a dual loss: both usable mineral resources and the structural value of natural biomaterials are squandered.

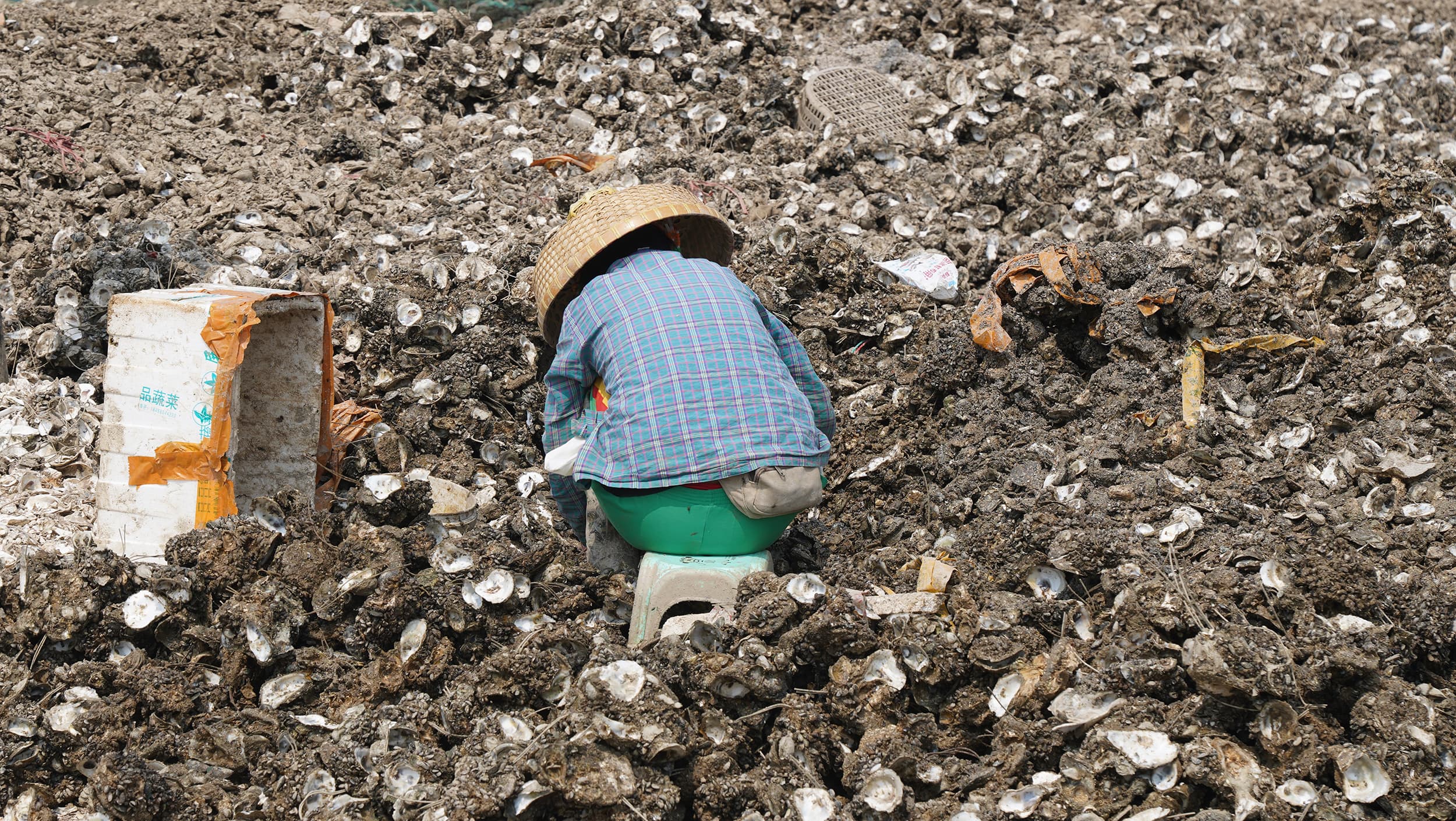

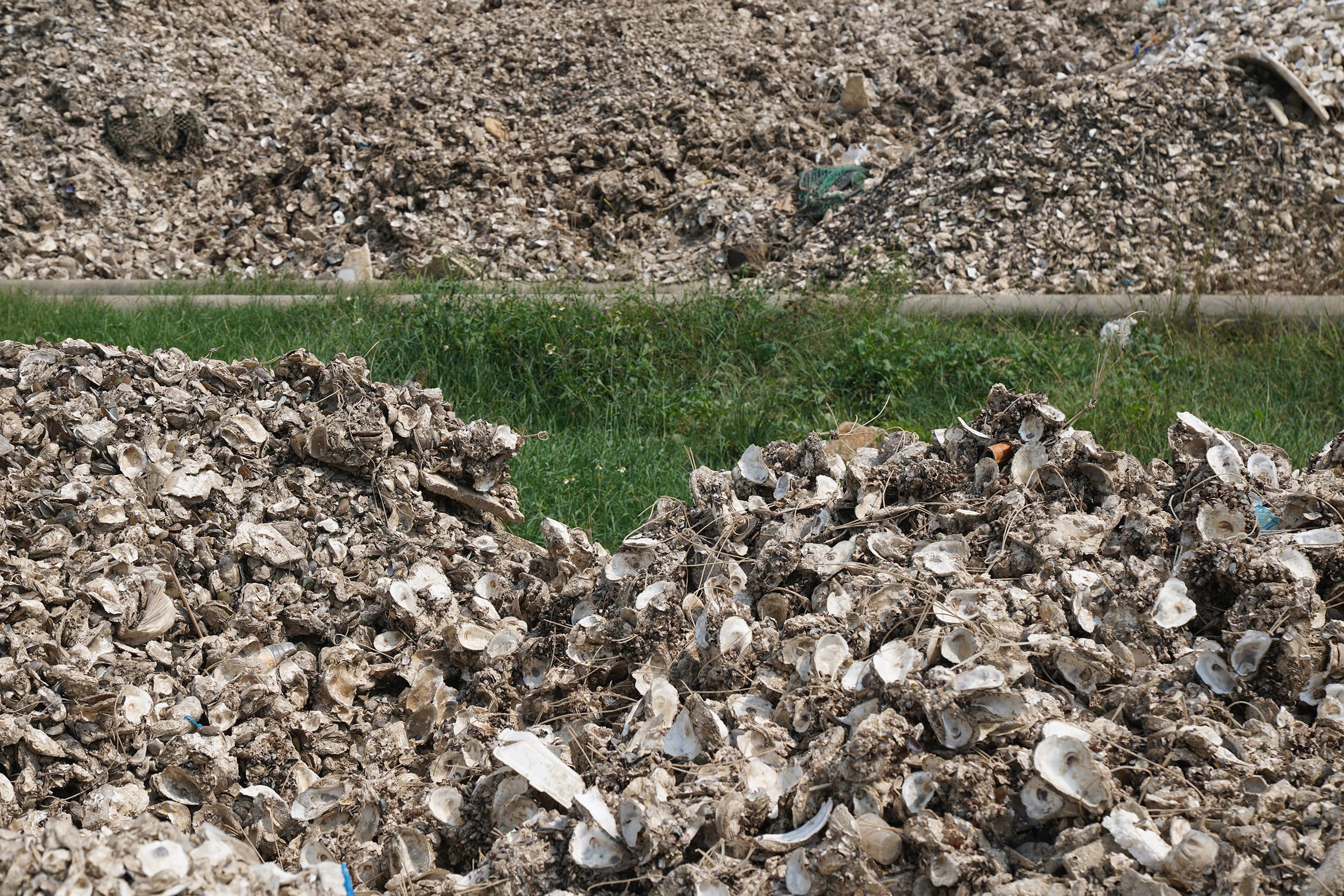

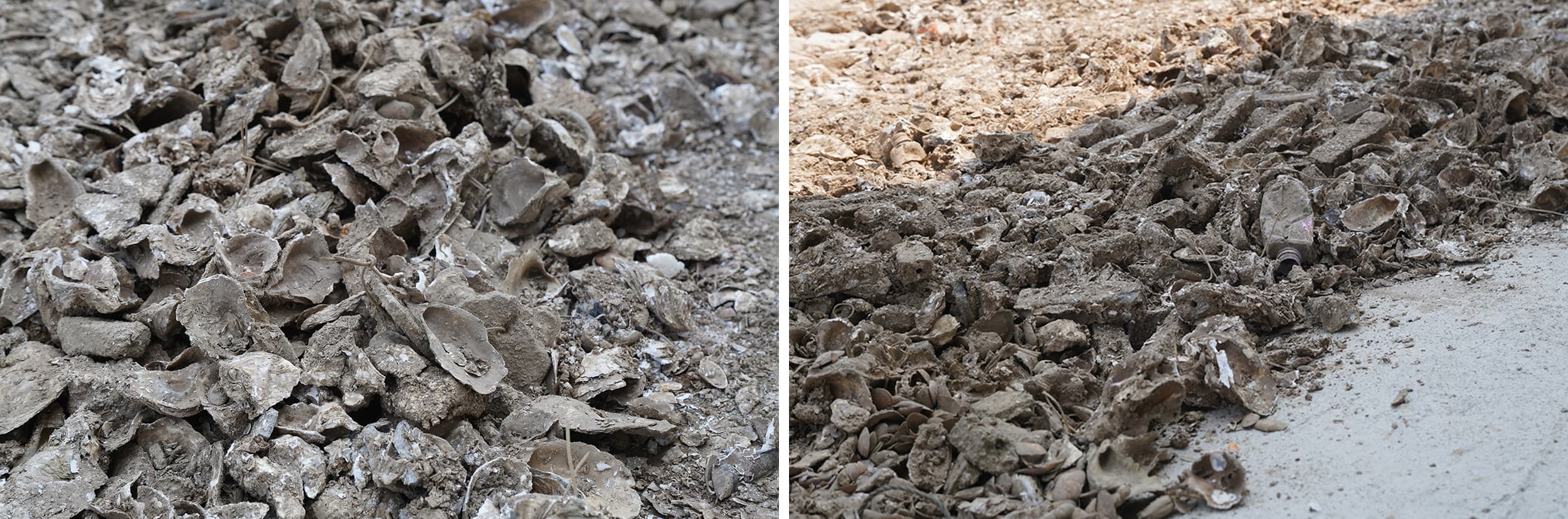

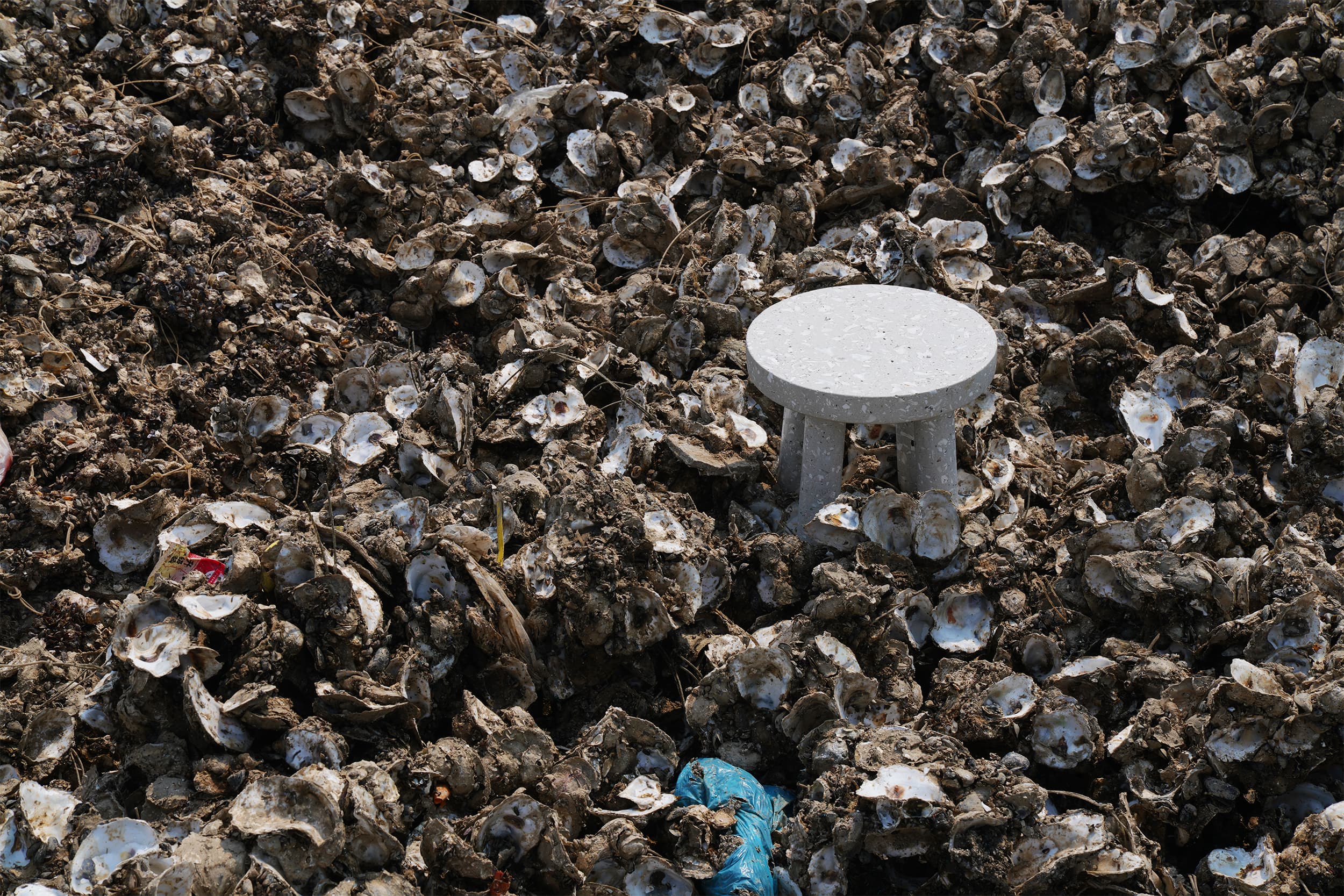

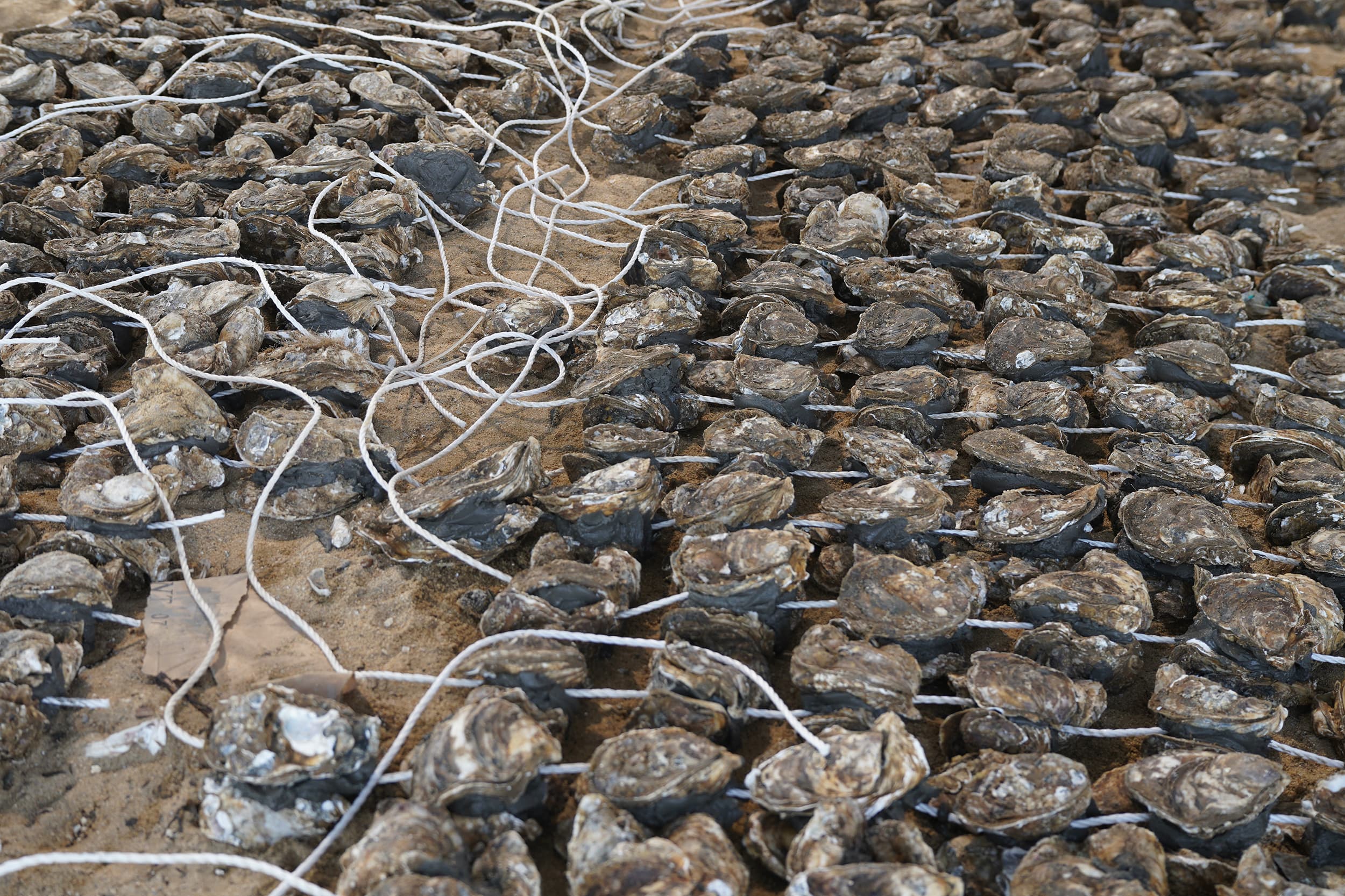

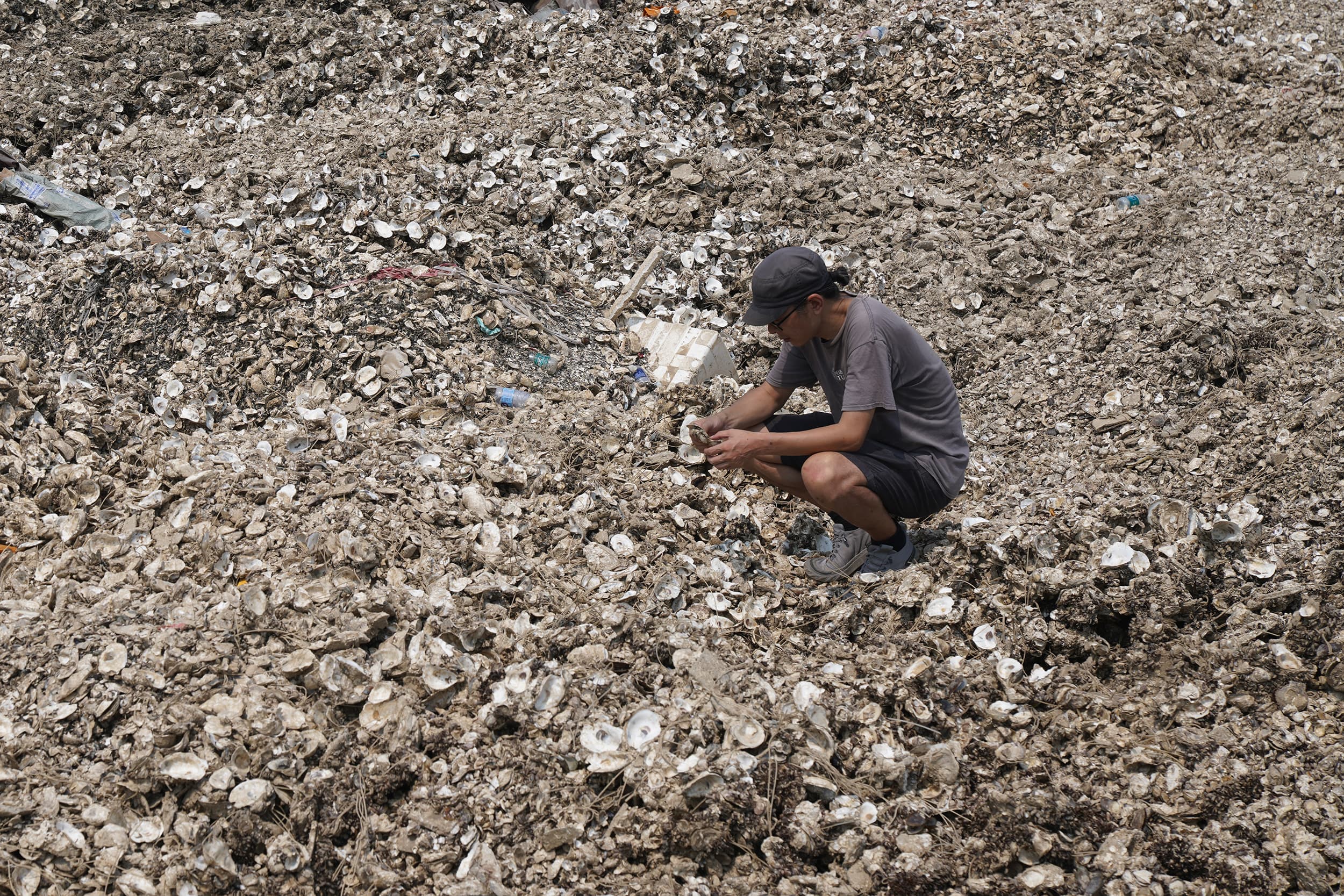

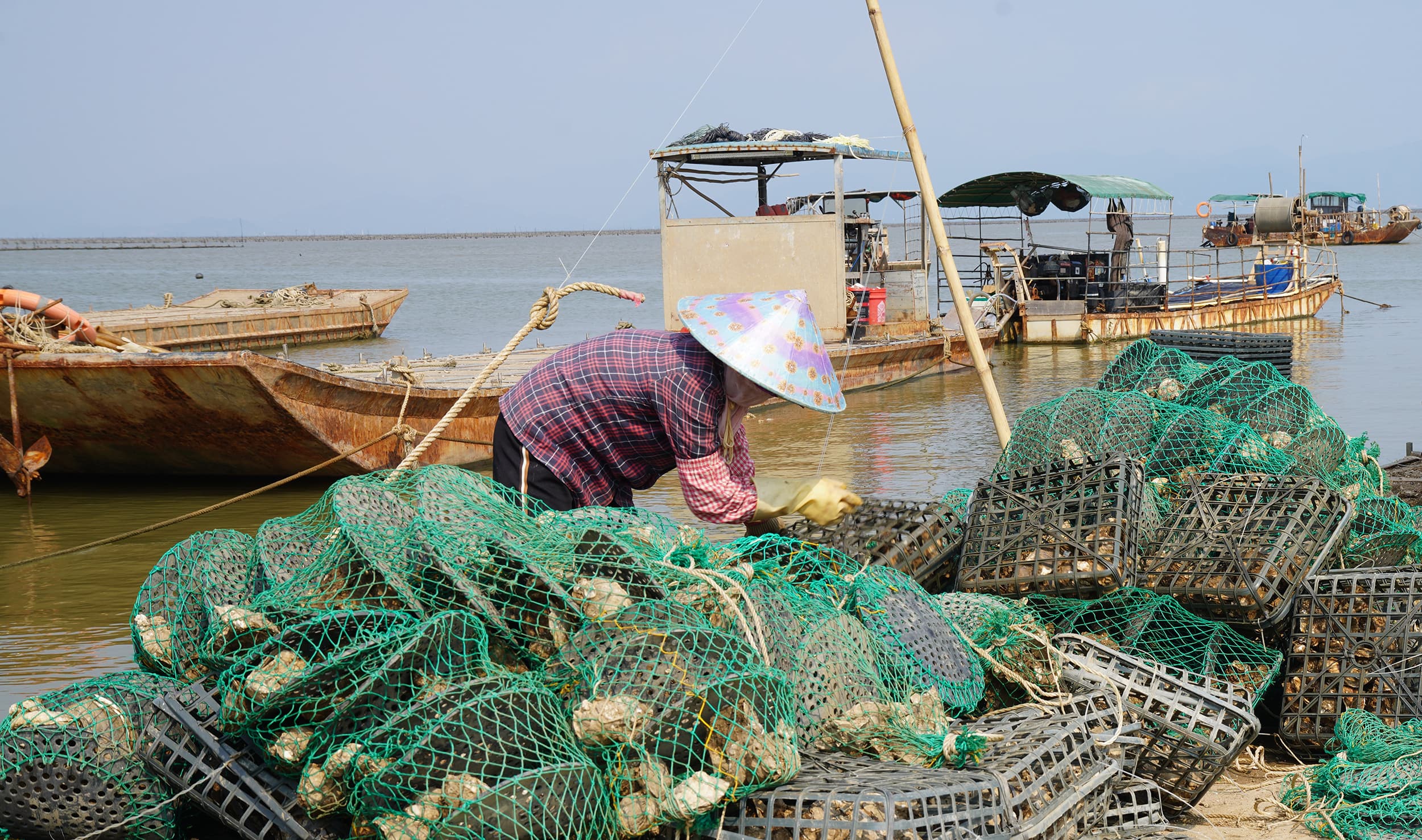

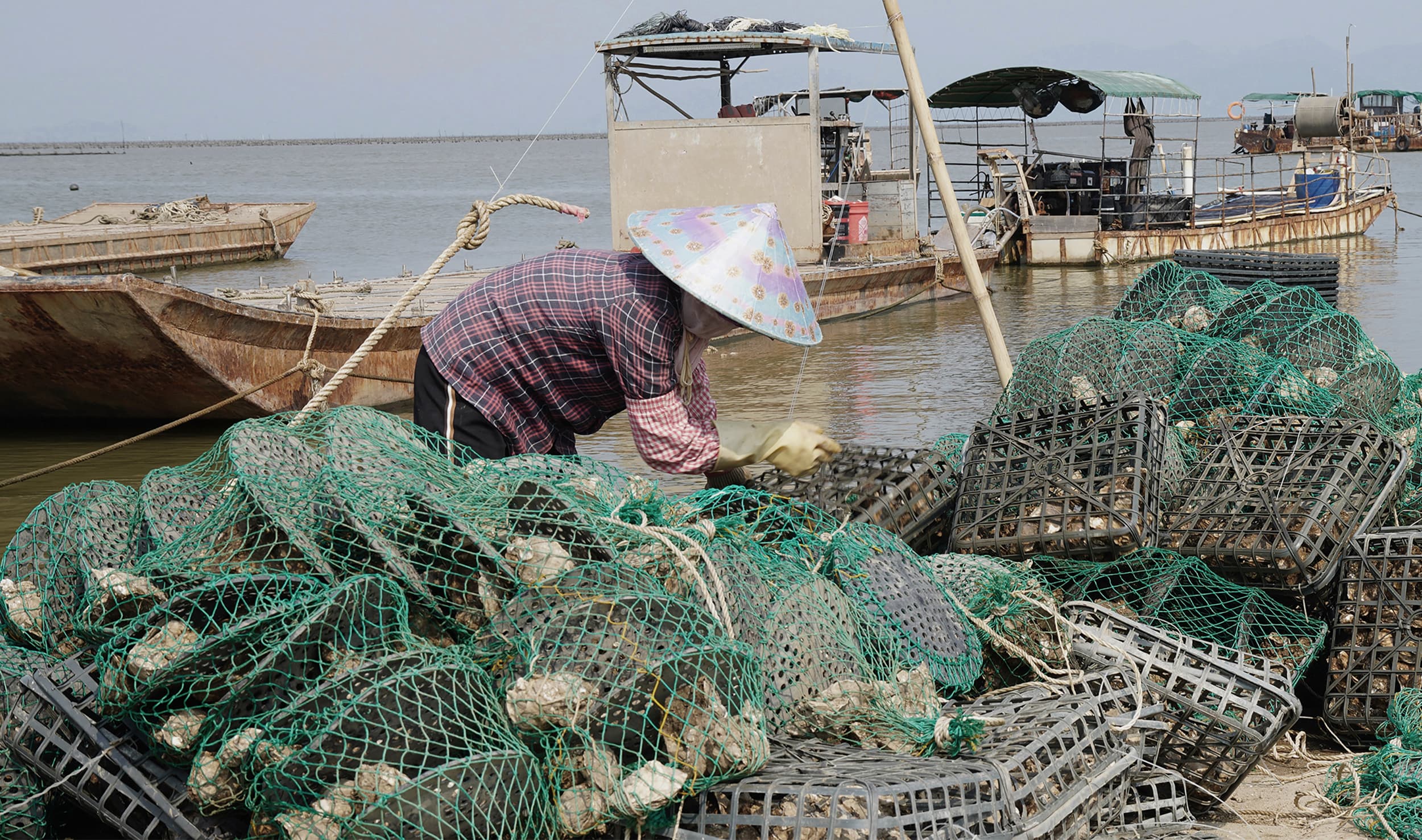

The issue is particularly prominent in Guangdong. Taishan, a major oyster‑farming hub in the Pearl River Delta, supplies vast quantities of oysters to the Greater Bay Area yet generates massive oyster‑shell waste downstream. Most shells are piled along coastlines or mixed with domestic waste for landfilling. High temperature and humidity in the subtropical climate accelerate organic decomposition, continuously harming local ecosystems and residents’ lives.

Taishan’s abundant, easily accessible oyster shells form the project’s core feedstock. Sourcing local materials reflects not only cost and supply practicality but also our commitment to regional circularity. Our R&D centre in Foshan, the heart of the PRD manufacturing belt, enables short‑distance circular material flow with Taishan. Compared with long‑haul procurement of standardised industrial raw materials, local sourcing drastically cuts transport energy use and carbon emissions — a fundamental tenet of sustainable design.

Coastal communities in China have long utilised shells historically. Since ancient times, residents of southeast coastal regions calcined oyster and clam shells at high temperatures to produce lime for foundation compaction, wall plastering and decorative moulding. The mechanism mirrors modern cement: calcium carbonate decomposes under calcination, then reacts with water and recarbonises to form robust structures.

Traditional crafts have also long celebrated shells’ aesthetic value. Mother‑of‑pearl inlay slices nacre for decorative ornamentation; Lingnan oyster‑shell walls stack whole shells to balance structural stability and distinctive texture; folk artisans craft ornaments and pearlescent coatings from shells.

A shared trait of these traditional uses is that shells were never treated as waste — their natural texture and aesthetic character were valued as assets rather than flaws to be eliminated. This contrasts sharply with industrial standards prioritising uniformity and purity, offering valuable references for contemporary material regeneration.

II. The Starting Point: The Wisdom of Biomineralisation

Shells are quintessential products of biomineralisation. Trace organic molecules serve as templates to guide directional bonding between calcium and carbonate ions, forming organic‑inorganic composite structures. No extreme heat or pressure is required, yet the resulting material outperforms pure calcium carbonate mechanically. Take nacre for instance: its superior toughness stems from alternating aragonite platelets and organic layers that dissipate stress and prevent brittle fracture.

Simply put, shell growth follows four stages: organisms absorb inorganic ions and organic compounds from seawater; organic molecules form ordered frameworks to regulate crystal growth location and morphology; inorganic ions crystallise along the organic templates; successive layering yields shells with mechanical strength and embedded environmental memory.

This growth mechanism stands fundamentally apart from industrial manufacturing. Industry reshapes matter through brute energy input; nature enables self‑organisation via molecular signalling. Organic components function as flexible regulators rather than rigid moulds, while calcium carbonate acts as core structural support rather than passive filler. Their interaction builds stable composite systems.

This shift from force‑driven transformation to gentle biological regulation demonstrates that high‑performance materials do not require excessive energy input — precise microscale control delivers equally outstanding outcomes.

III. Technology: Unfired Low‑Carbon Processing

Traditional shell lime relies on high‑temperature calcination for chemical conversion. In contrast, the geopolymer alkali‑activation technology of Inorganic Specimens preserves shells’ original form and texture while slashing energy use and emissions, fully retaining their natural biological characteristics.

The project utilises BENTU’s proprietary geopolymer binder system. Aluminosilicate feedstocks including metakaolin, silica fume, fly ash and waste mineral powder undergo depolymerisation under alkaline conditions, then reorganise into stable three‑dimensional gel networks at ambient or low temperatures.

We developed our custom formulation rather than adopting commercial alkali‑activated binders for key reasons unique to shell aggregates: smooth shell surfaces weaken binder adhesion; residual organics may disrupt curing; and preserving shell aesthetics demands balanced slurry flowability, curing rate and early‑stage strength. Most commercial mixes are optimised for fly ash and slag, and cannot accommodate shell‑specific requirements. Iterative testing refined our formula to enhance interfacial bonding and structural stability for shell‑based composites.

The environmental benefits are substantial. Conventional cement requires calcination at 1450°C and contributes roughly 8% of global anthropogenic carbon emissions. Geopolymers require no high‑temperature firing; emissions are limited to transport and mixing, delivering a far lower carbon footprint.

Two unfired forming techniques are deployed: casting and pressure‑forming. Casting suits irregular, complex components — high‑fluidity slurry fully fills moulds and cures naturally. Pressure‑forming enables mass production of standardised panels with higher density and dimensional stability. No high‑temperature sintering is needed, cutting energy costs and eliminating heat‑induced secondary pollution.

Ancient peoples transformed shells with fire; we preserve their natural form via ambient‑temperature processing. This does not reject tradition, but extends its core ethos: using local materials and respecting material nature with far lower carbon impact, enabling shells to re‑enter daily use close to their natural state.

IV. Material: Formulation Logic of Inorganic Specimens

Shell waste constitutes over 60% of the project’s composite system, acting as the primary aggregate and filler. Combined with waste mineral powder, metakaolin, silica fume and fly ash, the mix is consolidated via our proprietary alkali‑activated binder system, with fibres added for enhanced toughness. Formulations balance mechanical performance, local material utilisation and aesthetic expression across three core dimensions.

First, optimised particle‑size grading. Shell feedstock is sorted into powder, sand and chips. Fine particles fill voids to boost density; medium fractions build structural frameworks; large shell fragments remain exposed to showcase natural shell morphology. This balances strength, texture and visual character.

Second, targeted binder synergy. Silica fume fills micropores for higher density; metakaolin provides reactive phases to accelerate early curing; fly ash and mineral powder sustain long‑term strength and corrosion resistance through ongoing reactions.

Third, fibre toughening. Inorganic cementitious composites are inherently brittle. Alkali‑resistant fibres disperse stress and inhibit crack propagation to improve fracture resistance and overall toughness.

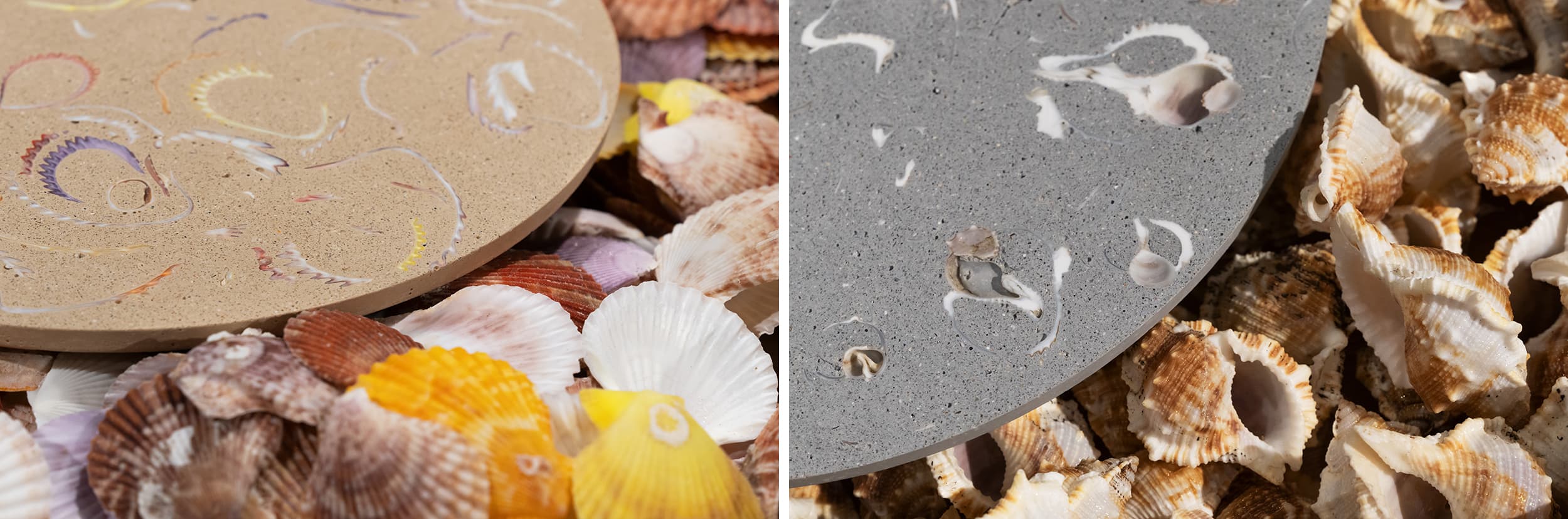

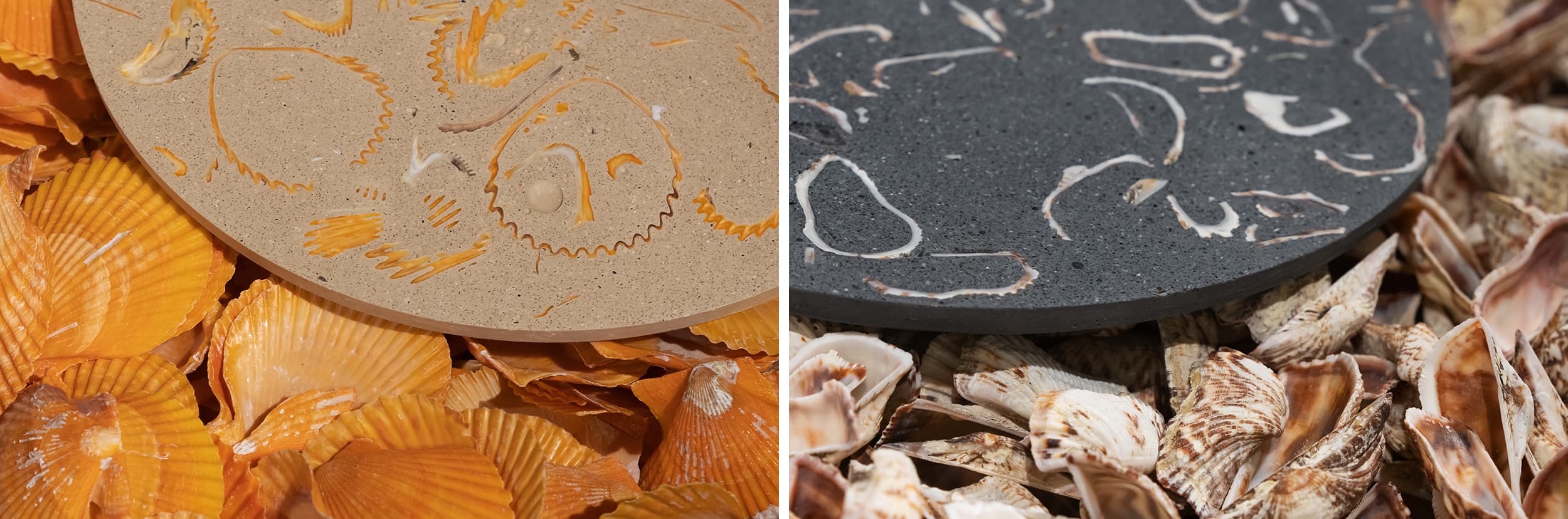

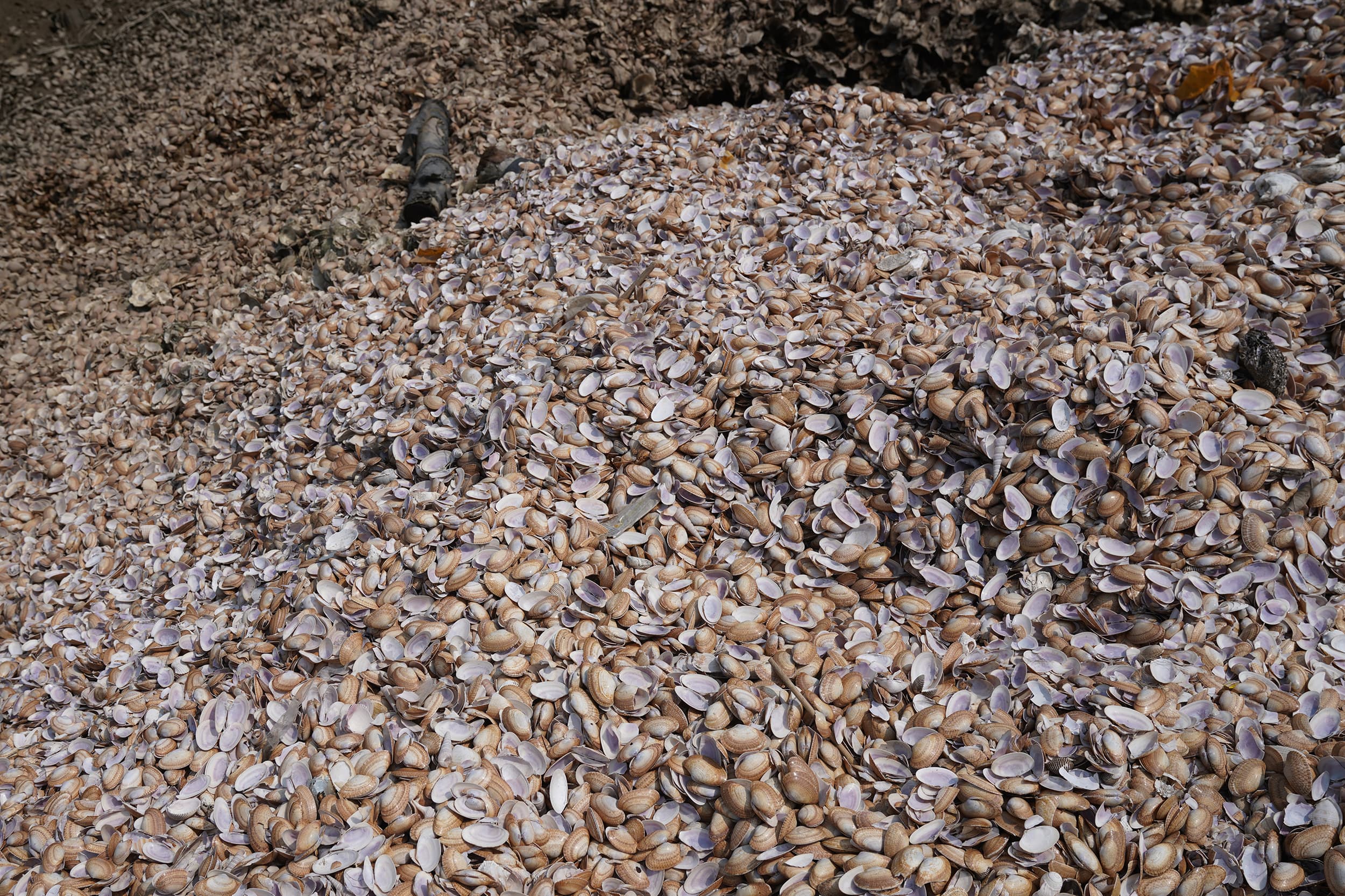

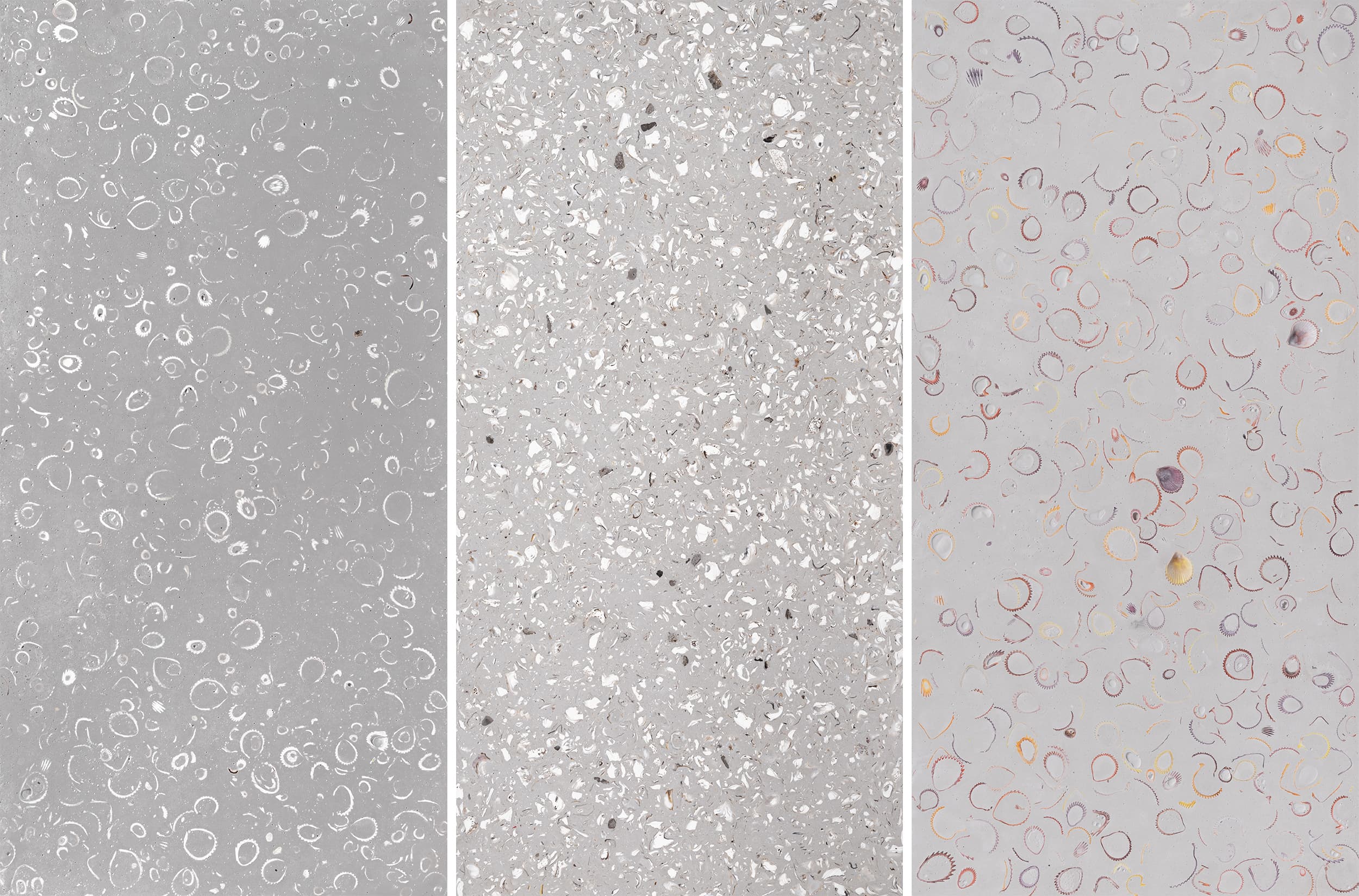

Feedstocks are not limited to oyster shells. Taishan’s thick, consistently supplied oyster shells serve as the primary structural aggregate for reliable performance. Clams, scallops and other coastal shells are integrated to introduce natural variation in colour, texture and lustre, making each batch visually unique.

This design prioritises structural stability while leveraging natural feedstock diversity for richer material expression. Oyster shells guarantee baseline performance, while supplementary shells introduce organic variation for controlled yet lively visual results.

Mechanical testing confirms finished composites achieve 10–12 MPa flexural strength and 50–60 MPa compressive strength, outperforming conventional structural concrete. Shell waste evolves from decorative filler into high‑performance load‑bearing aggregate.

V. Aesthetics: Preserved Life Traces

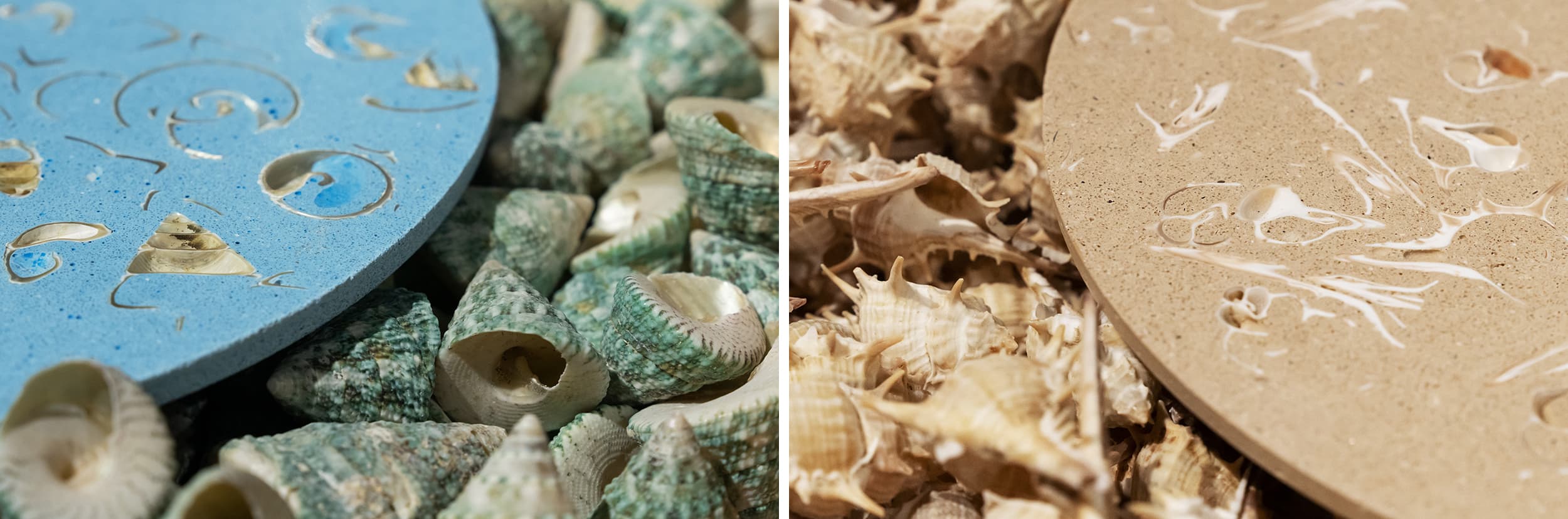

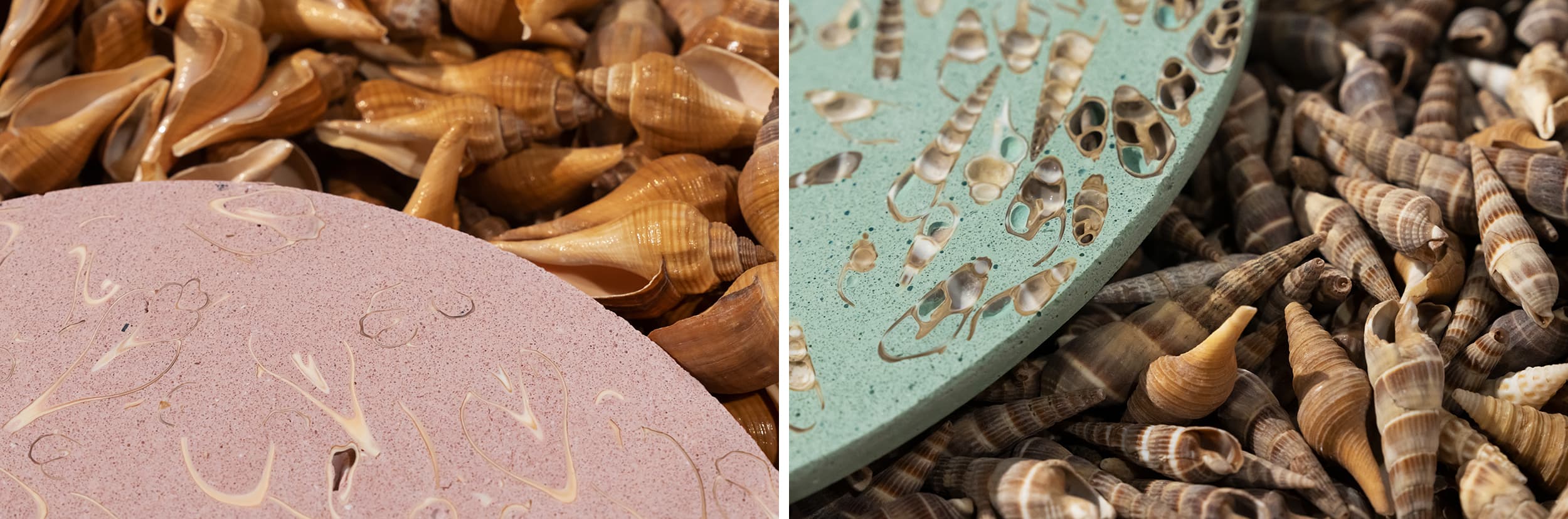

The defining feature of Inorganic Specimens is its complete retention of shells’ natural morphology.

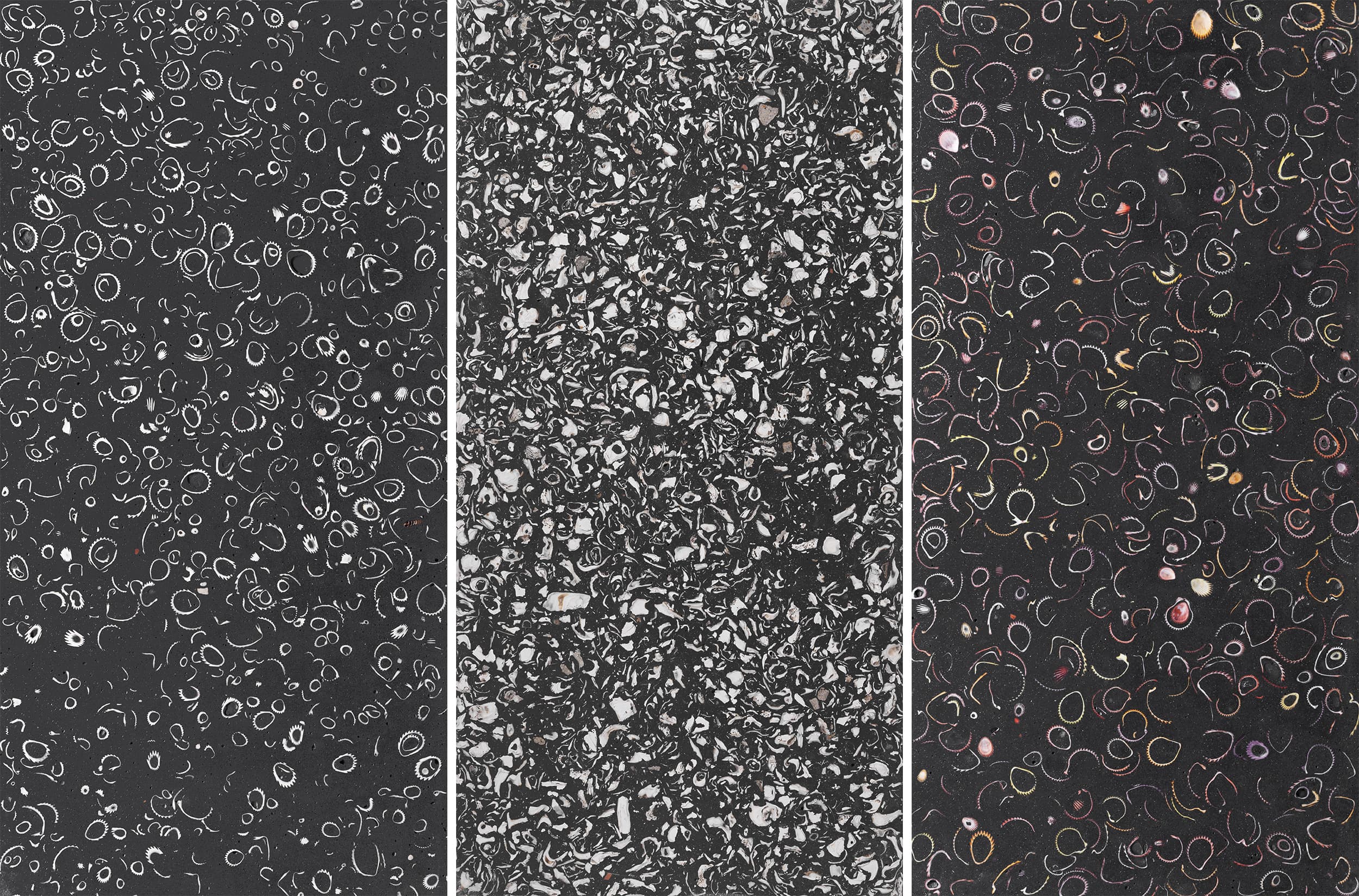

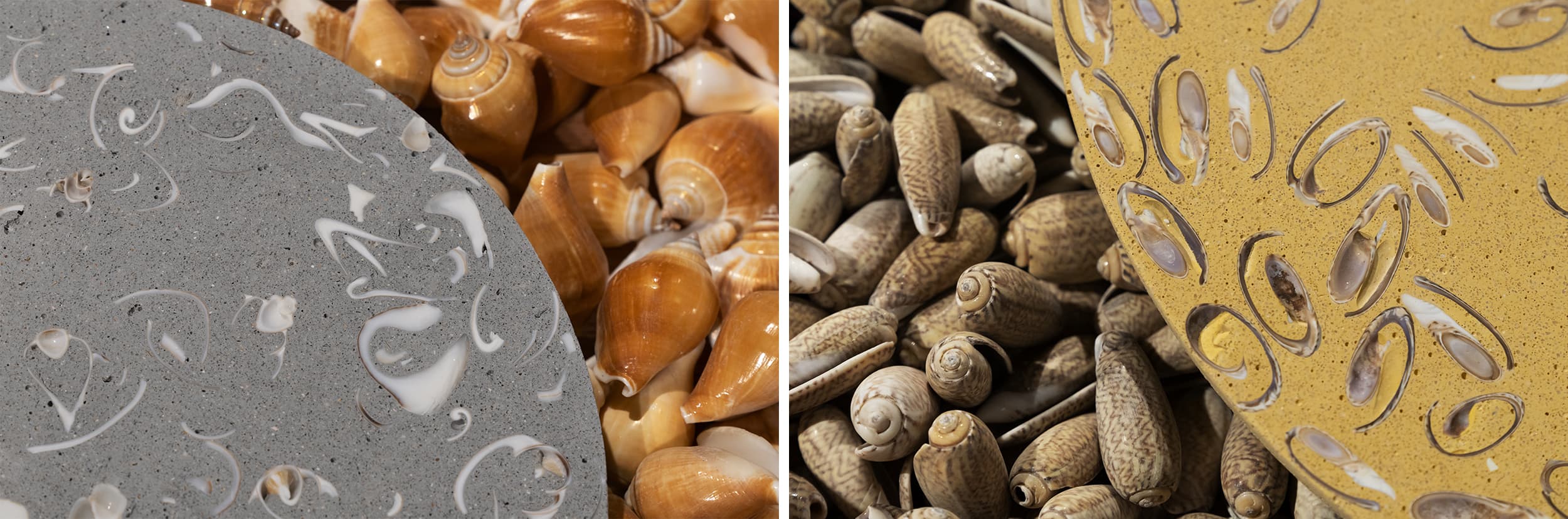

Contrary to industrial material standards of flatness, uniformity and purity, we intentionally preserve shell fragments’ original contours, textures, pearlescence and natural colour variation, permanently fixed within the binder matrix to create fossil‑like aesthetics. This is not deliberate ornamentation but a natural outcome of formulation and processing: shells avoid excessive crushing and full encapsulation, embedding their biological traces directly into the composite.

At its core, this aesthetic preserves the material’s biological memory. Each shell once formed the exoskeleton of marine life, its patterns recording growth conditions, temperature and water chemistry. Assembled fragments create solidified ocean slices capturing diverse natural signatures: layered growth lines of oysters, matte surfaces of clams, speckled patterns of scallops, forming organic visual depth.

This embodies the meaning of “specimen”: encapsulating life forms and preserving growth histories. Discarded shells escape waste status while retaining their natural morphology indefinitely. “Inorganic” denotes the final material phase; “specimen” honours preserved biological traces. Together, they dissolve the organic‑inorganic binary divide: life builds shells from inorganic matter, while design solidifies these discarded life traces into durable inorganic composites.

Traditional mother‑of‑pearl inlay uses shells as decorative accents. This project elevates shells to become the primary material, embedding marine life traces into everyday objects with understated, calm elegance.

VI. Repair: From Waste to Inorganic Specimen

Ultimately, Inorganic Specimens transcends material technology to embody a new attitude toward matter.

Modern industry operates on a linear extract‑produce‑use‑discard model. Once objects lose utility, they are classified as waste. Shell waste follows this trajectory: from biological exoskeleton to seafood by‑product, finally becoming disposable refuse. The issue lies not in shells lacking value, but in industrial systems failing to recognise residual material potential.

Recycling shells breaks the linear waste cycle. Yet regeneration means far more than material circularity. We pursue three forms of restoration: redirecting waste back into functional use; recreating natural shell‑like composite structures via custom formulations; and preserving native textures to retain material provenance.

Shells grow naturally off Taishan’s coast, are discarded post‑consumption, transported short‑distance to Foshan for processing, and consolidated into new composites. The process reconnects broken material chains. We do not grant waste a second life, but respect inherent material value to free shells from waste classification and sustain their natural circular journey.

Material regeneration is never about rescuing waste. It is about recognising intrinsic value in all matter, enabling nature‑derived materials to persist in daily life through gentler, more sustainable pathways.

Design Director: Xu Gang

This original article belongs to the BENTU Material Regeneration Practice Series. Taking shell waste and self‑developed geopolymer technology as case studies, it explores the inherent relationship between biomineralisation heritage and specimen‑based aesthetics.
